Chip: BK7231N 1T1R 54M 802.11b/g/n+BLE5.0 16*24mm

Item No.:
Main control chip: BK7231N Specifications: 1T1R Speed: 54M Interface: UART, PWM, ADC, DAC, I2C, SPI, GPIO, SDIO Size: 16*24*0.8mm (L*W*H) Working voltage: 3.3V Wireless standard: 802.11b/g/n+BLE5.0Band widt
Description Item specifics

Main control chip: BK7231N

Specifications: 1T1R

Speed: 54M

Interface: UART, PWM, ADC, DAC, I2C, SPI, GPIO, SDIO

Size: 16*24*0.8mm (L*W*H)

Working voltage: 3.3V

Wireless standard: 802.11b/g/n+BLE5.0

Band width: 2.4G

Working temperature: -20°C to +85°C

Features



■ Support Free RTOS operating system

■ Support STASTA, Soft AP and Sniffer mode

■ Comply with CE/FCC/SRRC electromagnetic compatibility regulations

■ Follow RoHs/REACH environmental protection directives

■ Golden finger package, easy to SMT process

■ Applicable to: smart lighting, smart switches, smart sockets, smart home appliances

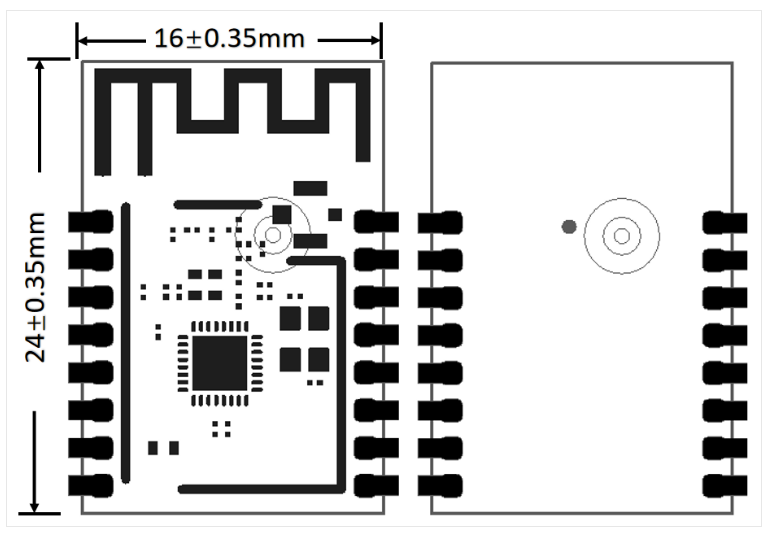

Module size chart

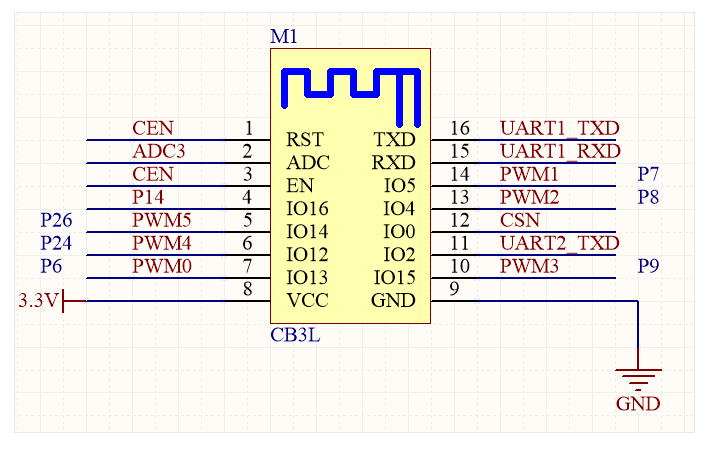

Module pin
