Main control chip: QCA9531
Specifications: 2T2R
Speed: 300M
Interface: USB, WAN, LAN, I2S, I2C/PCM, UART, GPIO
Size: 51.8*33.9mm (L*W)
Working voltage: 5V
Wireless standard: 802.11b/g/n
Band width: 2.4G
Working temperature: -20°C to +85°C
Features
■ The module is based on Qualcomm's QCA9531 main chip solution, the main frequency is up to 650MHz, and it is equipped with 128MB DDR2 RAM and 16MB SPI FLASH
■ Conforms to IEEE802.11b/g/n wireless network protocol, supports three working modes of bridging, routing, and access point
■ Adopt 2x2 MIMO (Multiple input multiple output) architecture, wireless signal multi-channel transmission and reception, transmission rate up to 300Mbps
■ Achieve a variety of communication transmission, input and output control, intelligent control of IOT applications, convenient for debugging and product development.
■ 1 UART interface 1WAN, 4LAN wired network port “stamp hole” and “pin” dual design external connection two IPEX seats, free configuration of antenna type
■ Application areas: smart home, wireless storage, WIFI speakers, network cameras, baby monitoring, routers, repeaters, wireless APs

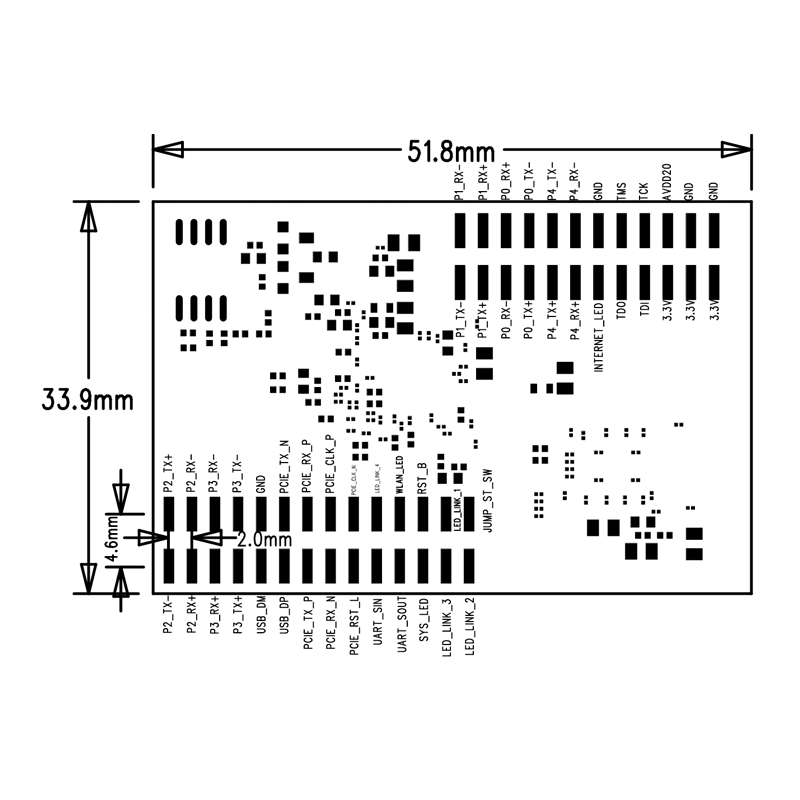

Module size chart
Module pin
