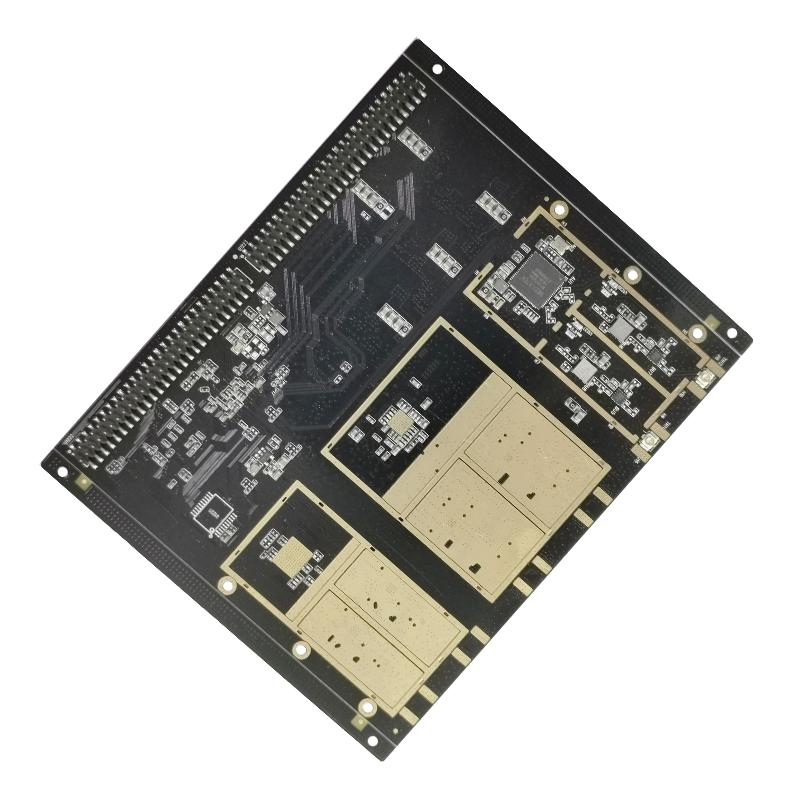

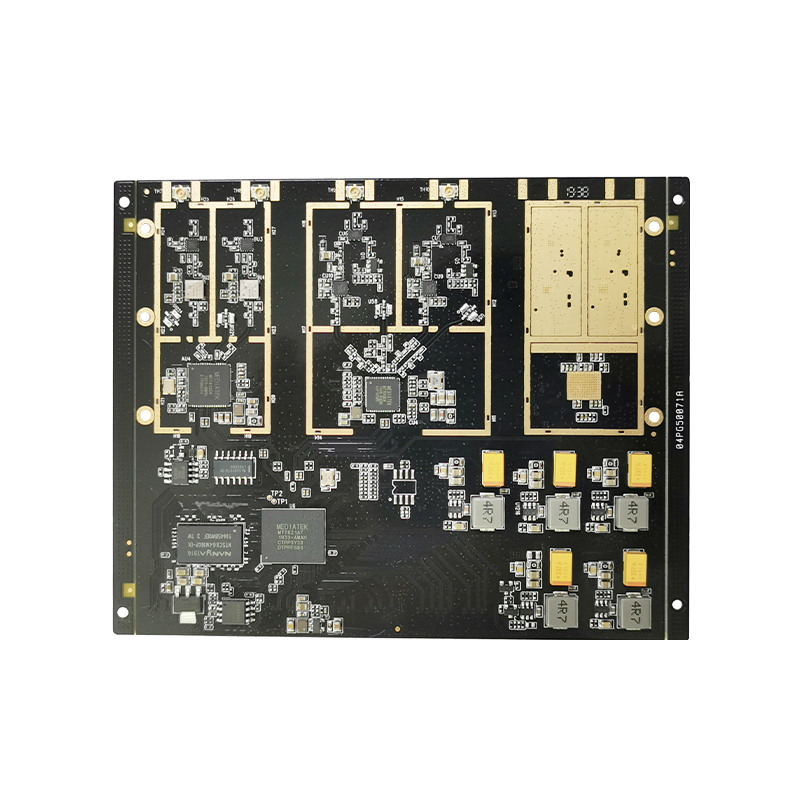

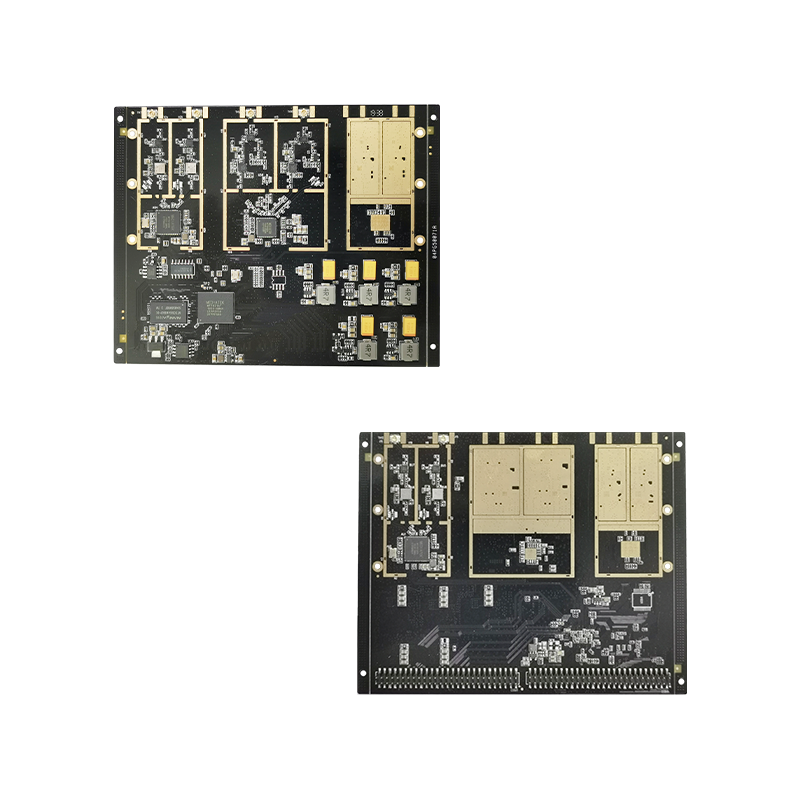

■ The module is based on Taiwan MTK's MT7621AT+MT7612EN+MT7603EN main chip solution, the main frequency is up to 880MHz, and it is equipped with 128MB DDR2 RAM and 16MB SPI FLASH

■ Conforms to IEEE802.11b/g/n wireless network protocol, supports three working modes of bridging, routing, and access point

■ Adopt 2x2 MIMO (Multiple input multiple output) architecture, wireless signal multiplex transmission and reception, transmission rate up to 1200Mbps

■ Achieve a variety of communication transmission, input and output control, intelligent control of IOT applications, convenient for debugging and product development

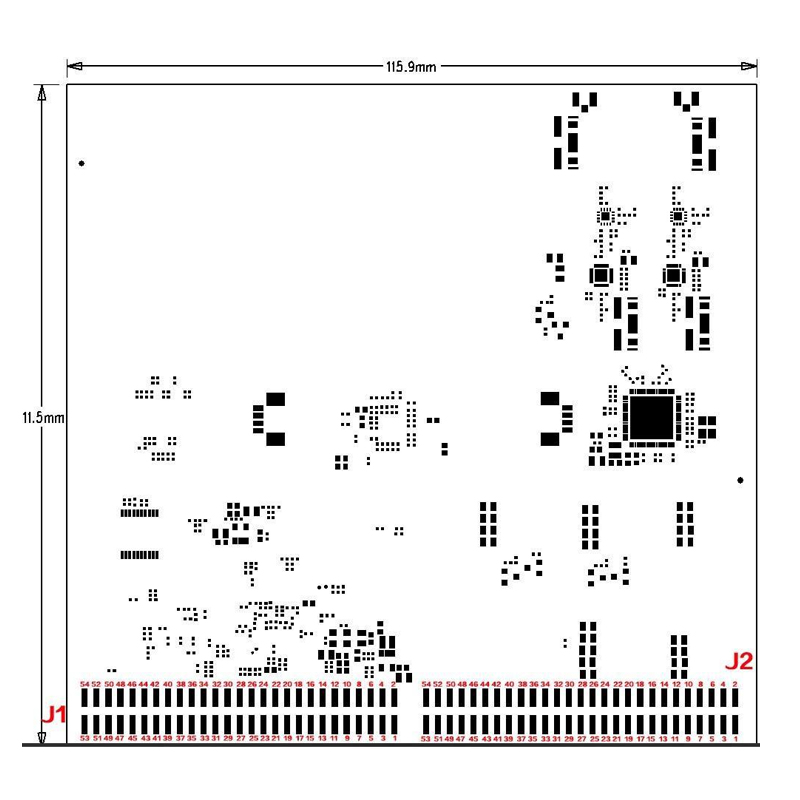

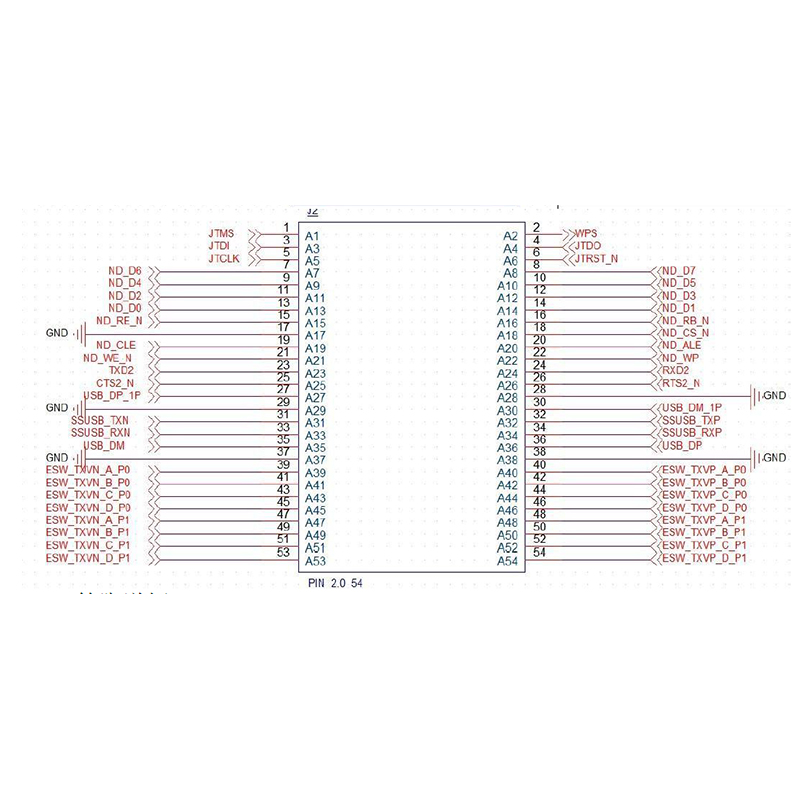

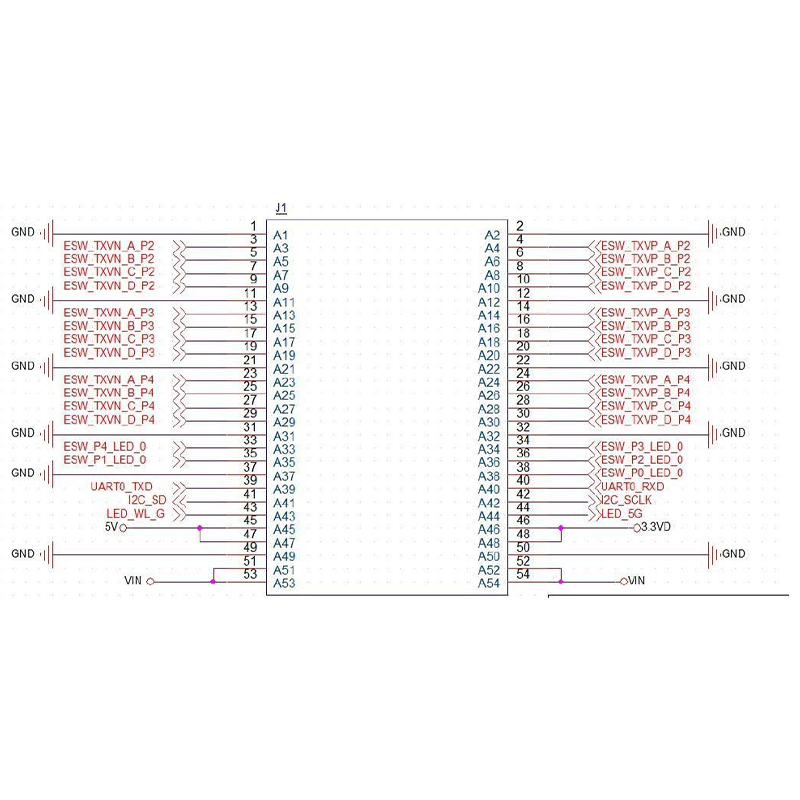

■ Multiple GPIOs, 1 UART interface, 1WAN, 3LAN wired network port “stamp hole” and “pin” dual design external connection method four IPEX sockets, freely configurable antenna type

■ Application areas: smart home, wireless storage, WIFI speakers, network cameras, baby monitoring, routers, repeaters, wireless APs
