Realtek

Chip: RTL8189FTV-VQ1 1T1R 2.4G 72M SDIO2.0 14.0*12.5mm

Item No.:

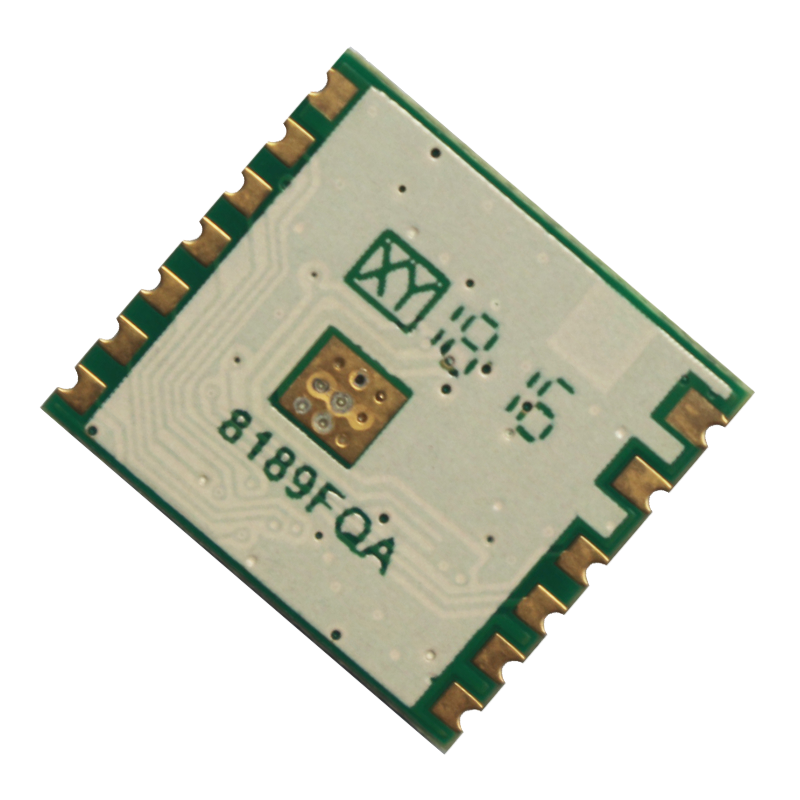

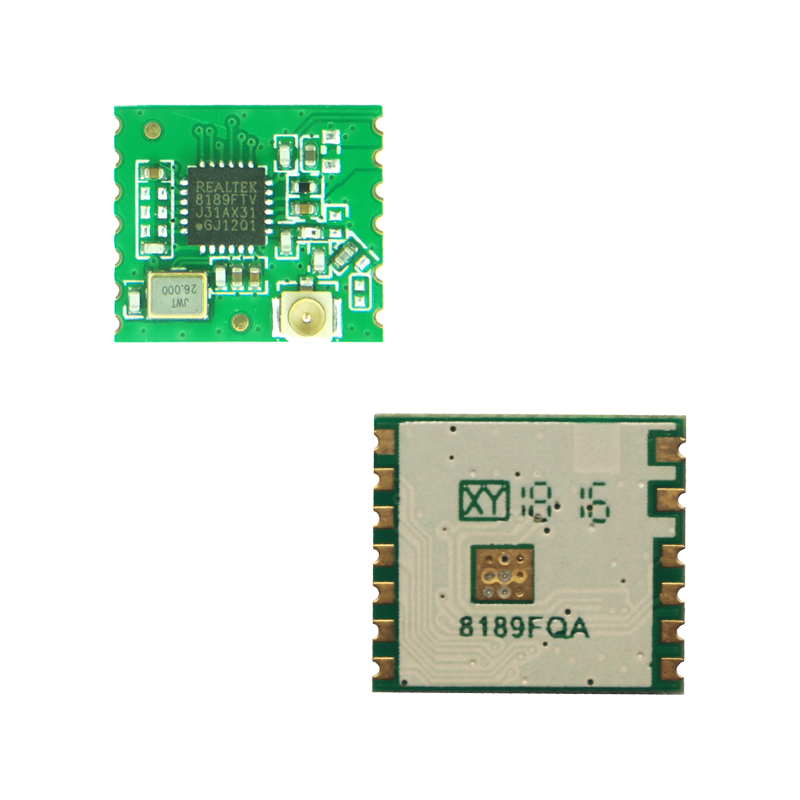

This module uses the RTL8189FTV solution. The module is suitable for tablet computers, laptops, readers and other network cameras, set-top boxes, etc.; suitable for smart TVs, high-definition 4K TVs, smart theater projection equipment; consumer electronics devices or smart appliances (TV, DVD player, Blu-ray player, OTT, STB, IPTV, etc.).
Description Item specifics

Main control chip: RTL8189FTV-VQ1

Specifications: 1T1R

Speed: 72M

Interface: SDIO2.0

Size: 14.0*12.5*2.1mm (L*W*H))

Working voltage: 3.3V

Wireless standard: 802.11b/g/n

Band width: 2.4G

Working temperature: -20°C to +70°C


Features



           ■ Support Linux/Android operating system

           ■ Support Soft AP

           ■ Comply with CE/FCC/SRRC electromagnetic compatibility regulations

           ■ Follow RoHs/REACH environmental protection directives

           ■ Stamp hole package, easy to SMT process

           ■ Suitable for: IPC, smart TV, set-top box, driving recorder

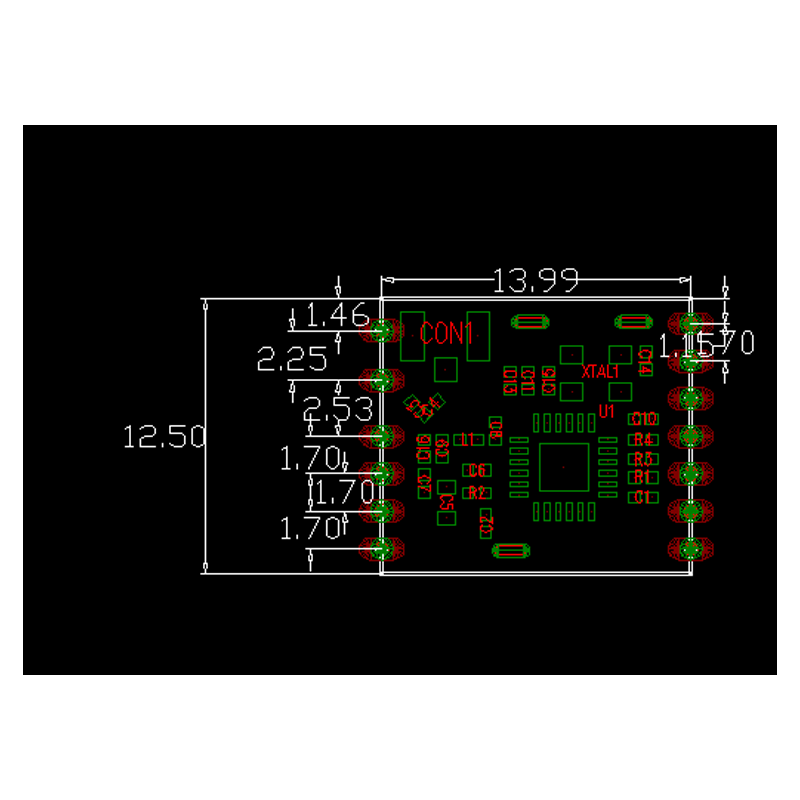

                                                                                                                                               Module size chart

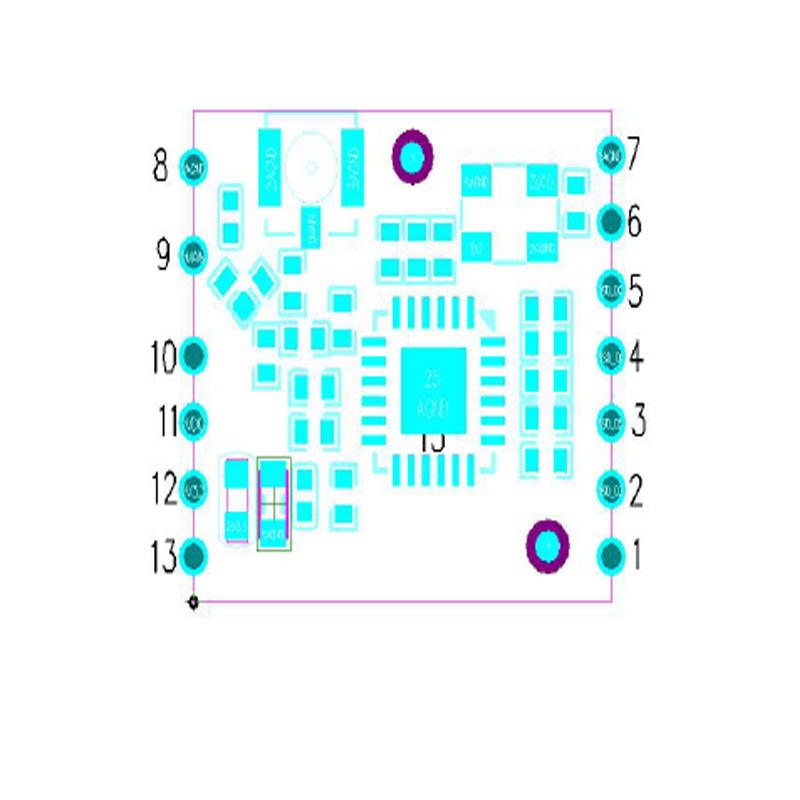

                                                                                                                                                    Module pin



PinNameDescription
1SDIO_CMDSDIo command/GSPl data input
2SDIO_D3SDIo data 3/GSPI chip select
3SDIO_D2SDIO data 2
4SDIO_D1SDIo data 1/GSPI Data Output
5SDIO_D0SDIO data 0/GSPI Data Output
6SDlO_CLKSDIo cLocK/GsPI CLOcK
7GNDGround
8GNDGround
9Wl_ANTWLAN radio antenna pad
10WAKEWLAN wake
11VIOPower supply for l/o
12VCC_3V3Power supply
13CSPower down select
14GNDGround
