Realtek

Chip: RTL8189FTV-VQ1 1T1R 2.4G 72M SDIO2.0 12*12mm

Item No.:

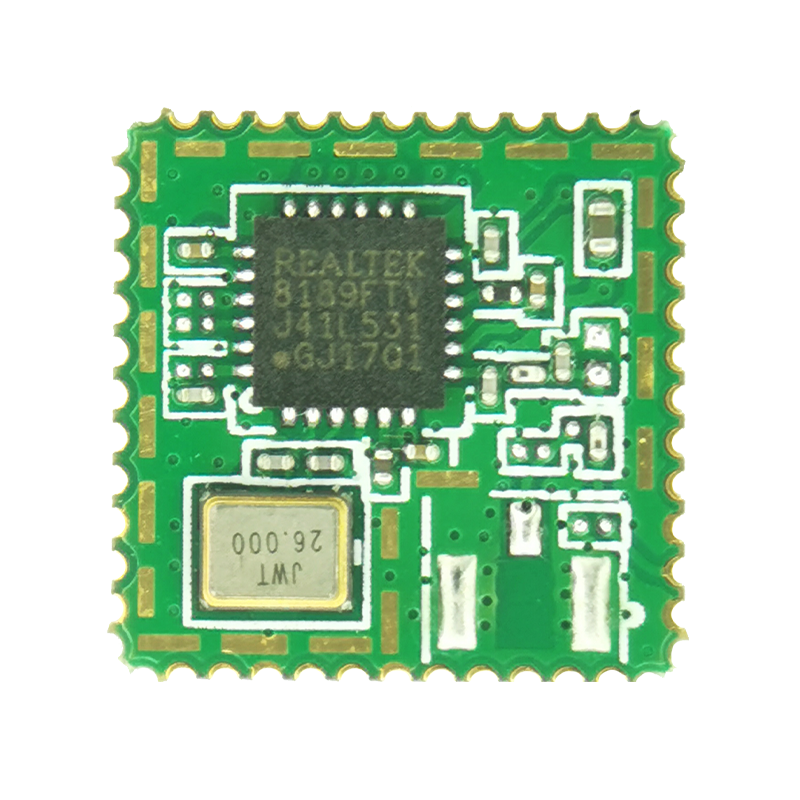

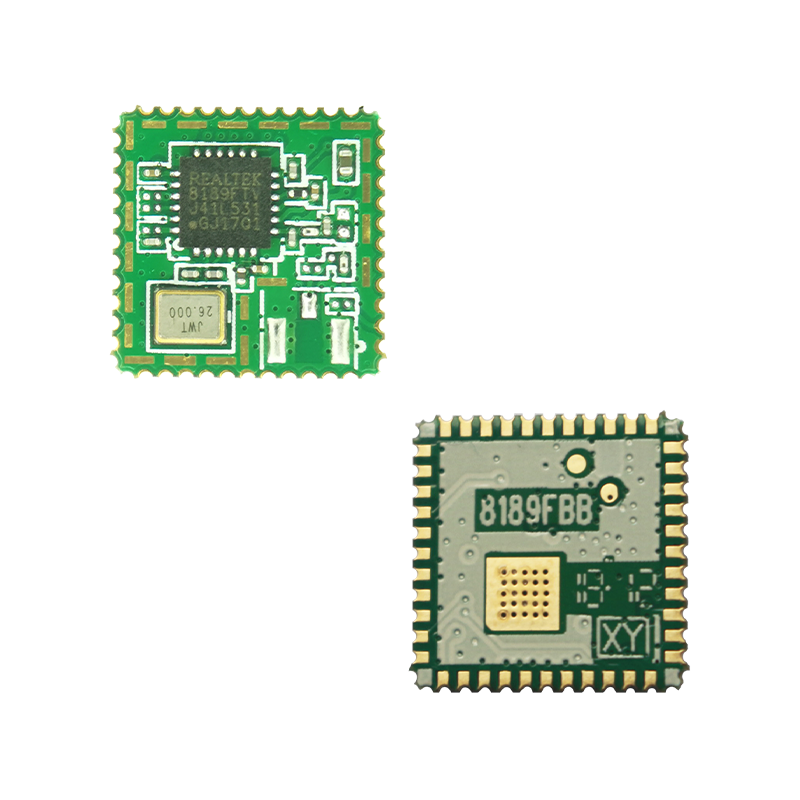

The module uses the RTL8189FTV solution. The module is suitable for tablet computers, laptops, readers and other network cameras, set-top boxes, etc.; suitable for smart TVs, high-definition 4K TVs, smart theater projection equipment; consumer electronics devices or smart home appliances (TV, DVD player player, Blu-ray player, OTT, set-top box, IPTV, etc.).
Description Item specifics

Main control chip: RTL8189FTV-VQ1

Specifications: 1T1R

Speed: 72M

Interface: SDIO2.0

Size: 12*12 *1.6mm (L*W*H)

Working voltage: 3.3V

Wireless standard: 802.11b/g/n

Band width: 2.4G

Working temperature: -20°C to +70°C

Features



■ Support Linux/Android operating system

■ Support Soft AP

■ Comply with CE/FCC/SRRC electromagnetic compatibility regulations

■ Follow RoHs/REACH environmental protection directives

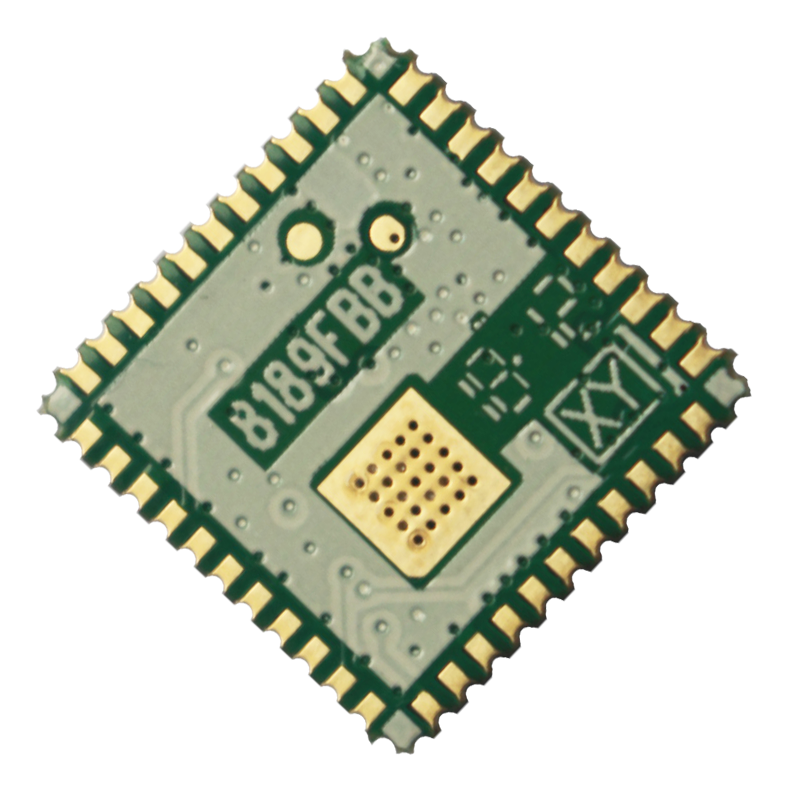

■ Stamp hole package, easy to SMT process

■ Suitable for: IPC, smart TV, set-top box, driving recorder

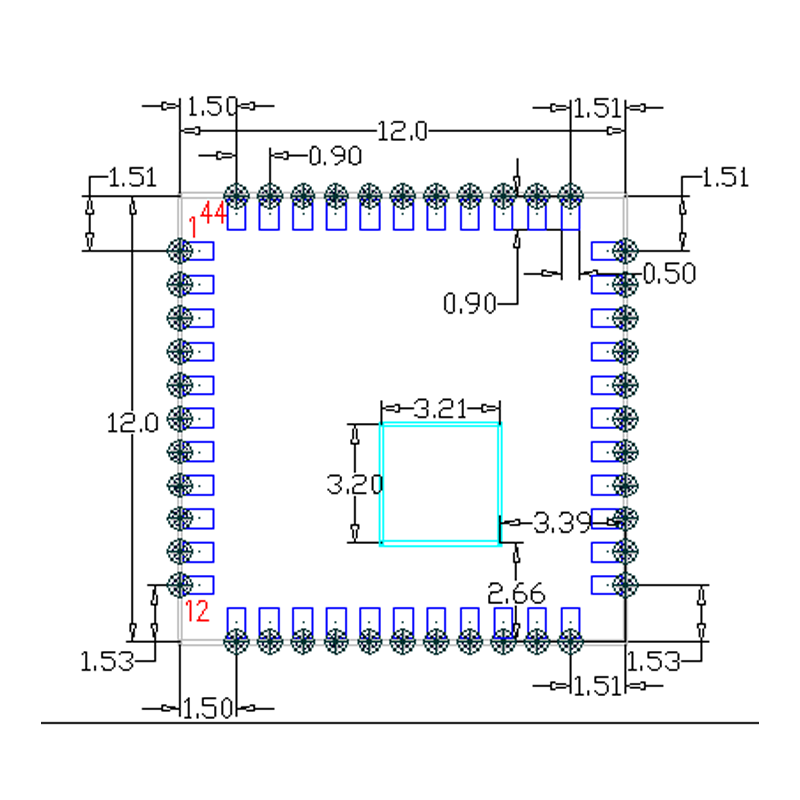

Module size chart


32

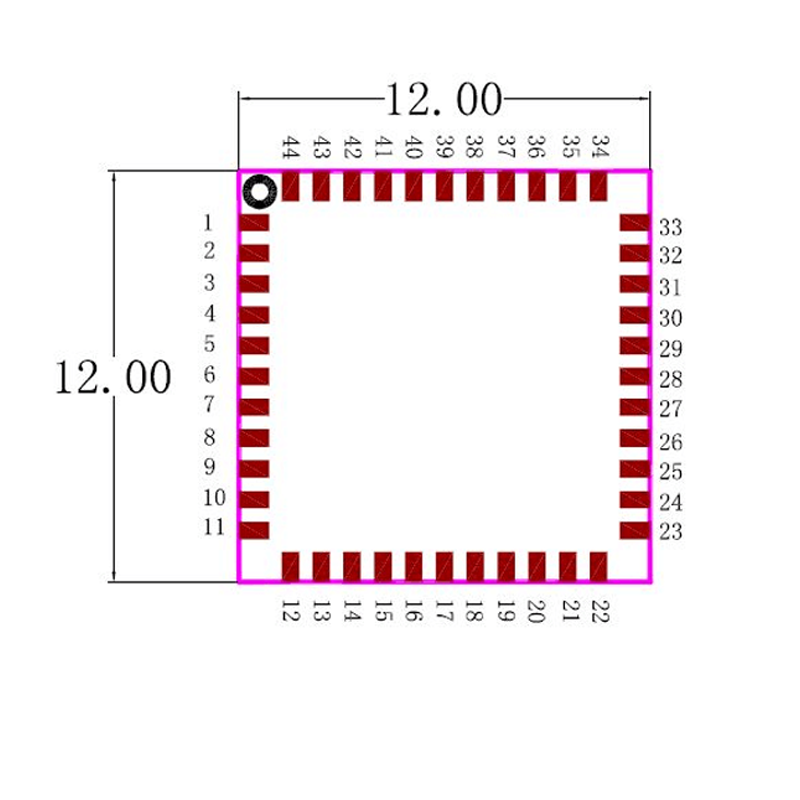

Module pin



EW

Pin serial numberPin nameFunction description
1GNDGND
2RFRF OUTPUT
3GNDGND
4~8NCNC
9VBAT3.3V Optional
10NCNC
11NCNC
12WL_REG_ONWL_REG_ON
13WL_HOST_WAKEWAKE UP
14SDIO_DATA_2SDIO_D2
15SDIO_DATA_3SDIo_D3
16SDI0_DATA_CMDSD1o_CMD
17SDI0_DATA_CLKSDIO_CLK
18SDIO_DATA_DOSDIo_Do
19SDIO_DATA_D1SDI0_D1
20GNDGND
21NCNC
22VDIO1.8~3.3v
23NCNC
24LPoCLK_REQ
25~29NCNC
30TCXO_IN26MHz_IN
31GNDGND
32NCNC
33GNDGND
34~35NCNC
36GNDGND
37~40NCNC
41GNDGND
42~44NCNC
