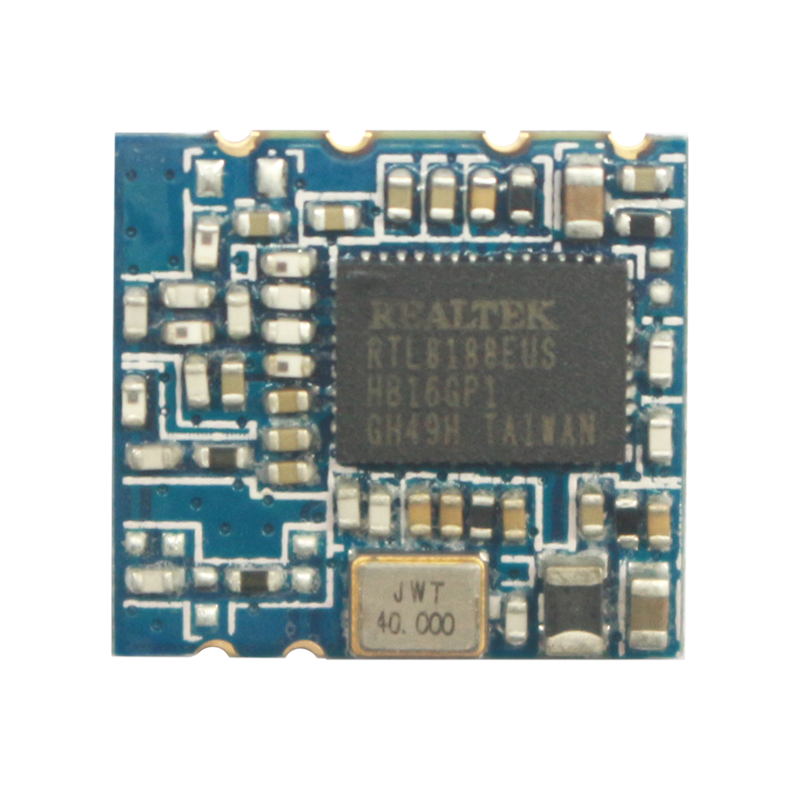

Chip: RTL8188EUS 1T1R 2.4G 150M USB2.0 12.2*12.9mm

Item No.:
Main control chip: RTL8188EUS Specifications: 1T1R Speed: 150M Interface: USB2.0 Size: 12.2*12.9*1.6mm (L*W*H)Working voltage: 3.3VWireless standard: 802.11b/g/n Band width: 2.4G
Description Item specifics

Main control chip: RTL8188EUS

Specifications: 1T1R

Speed: 150M

Interface: USB2.0

Size: 12.2*12.9*1.6mm (L*W*H)

Working voltage: 3.3V

Wireless standard: 802.11b/g/n

Band width: 2.4G

Working temperature: -20°C to +70°C

Features

■ Support Linux/Android operating system

■ Support Soft AP

■ Comply with CE/FCC/SRRC electromagnetic compatibility regulations

■ Follow RoHs/REACH environmental protection directives

■ Stamp hole package, easy to SMT process

■ Suitable for: IPC, smart TV, set-top box, driving recorder

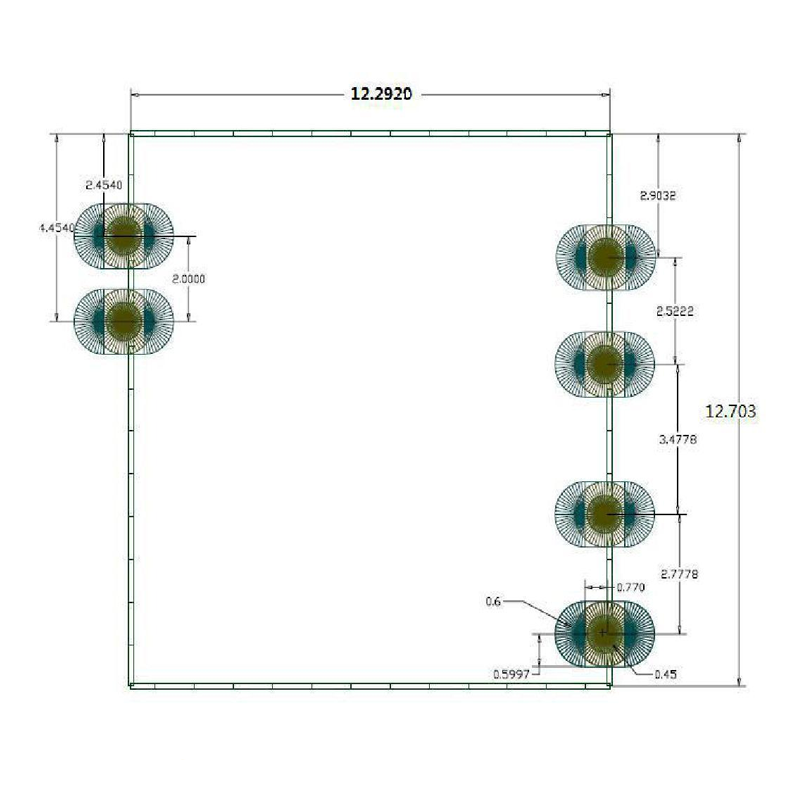

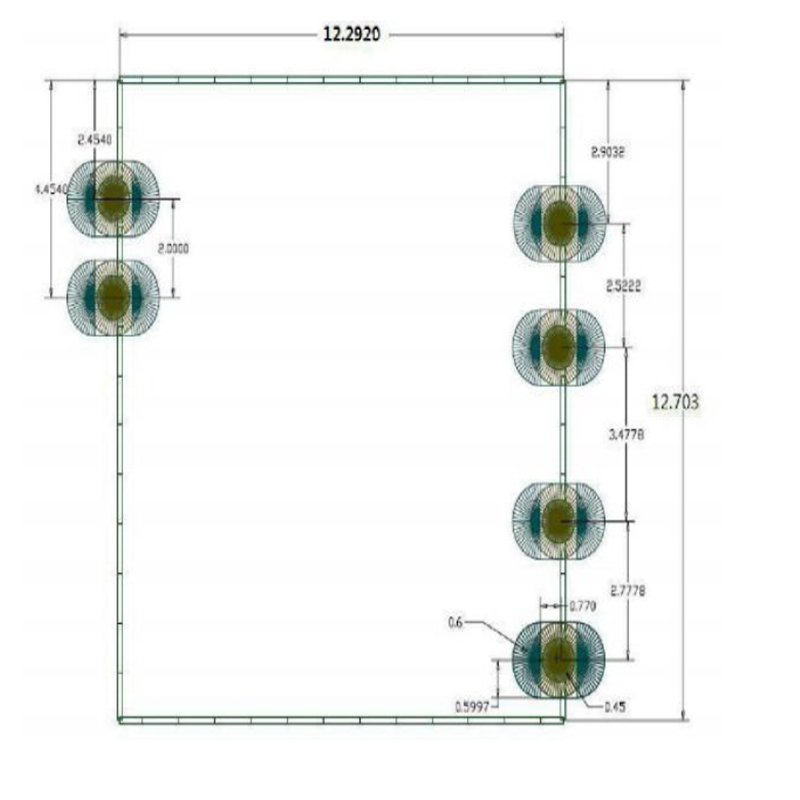

Module size chart

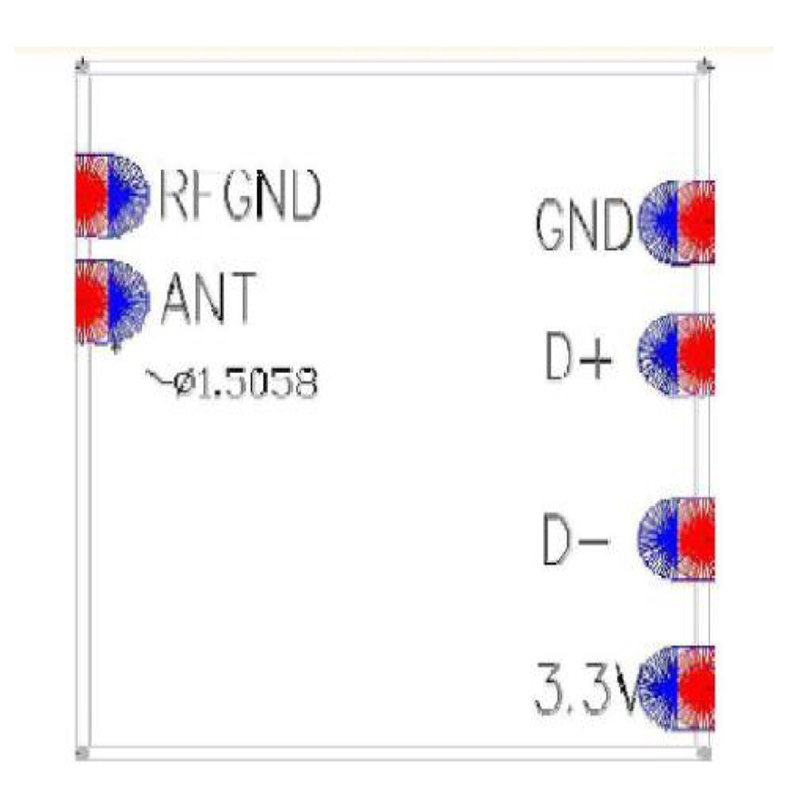

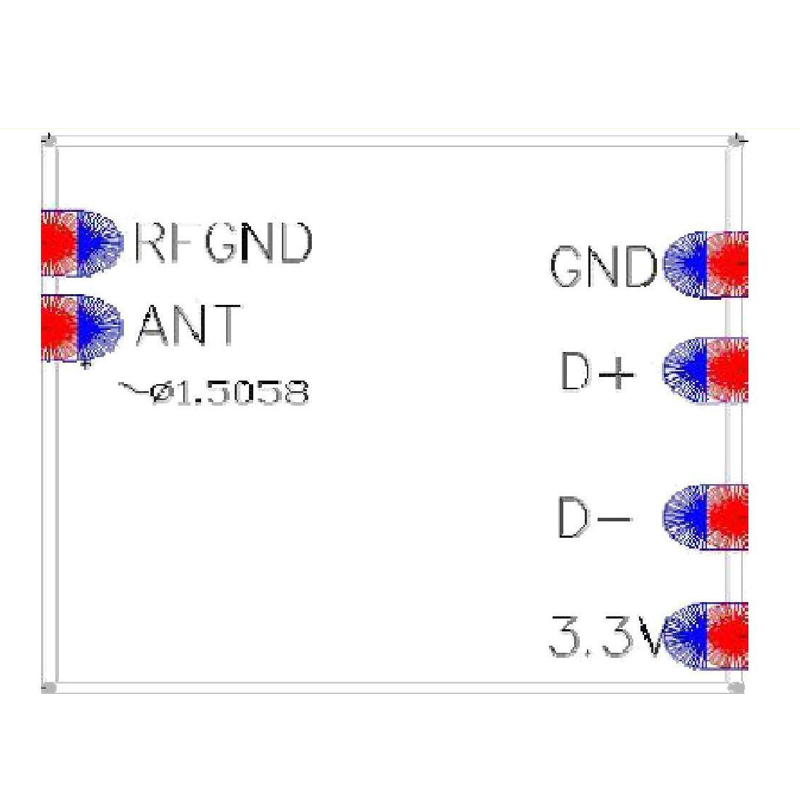

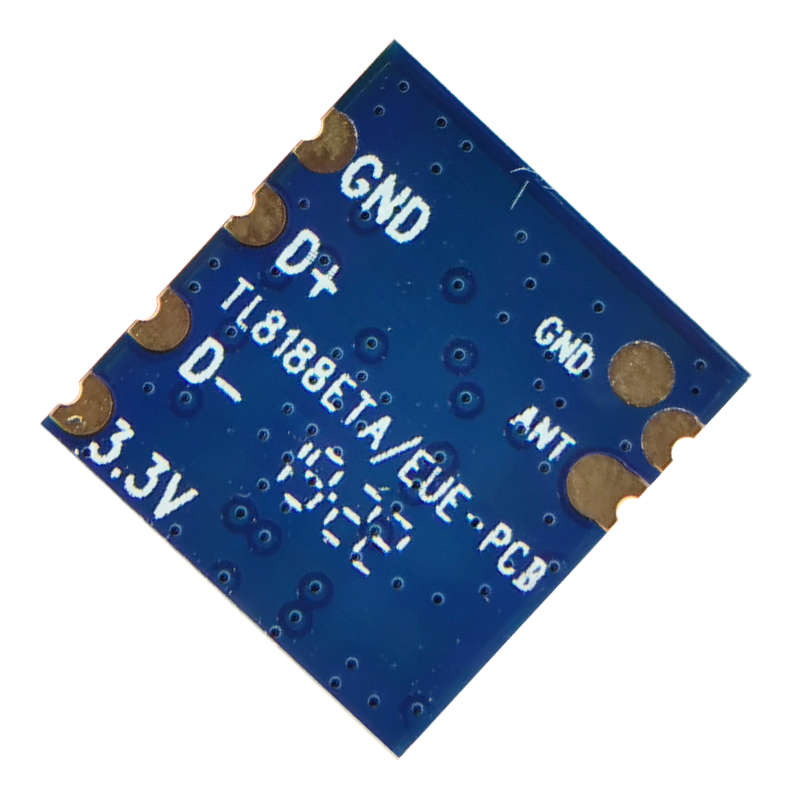

Module pin



Pin serial numberPin nameFunction description
13.3V3.3V
2D-UDM
3D+UDP
4GNDGND
5GNDGND
6ANTRF OUTPUT
