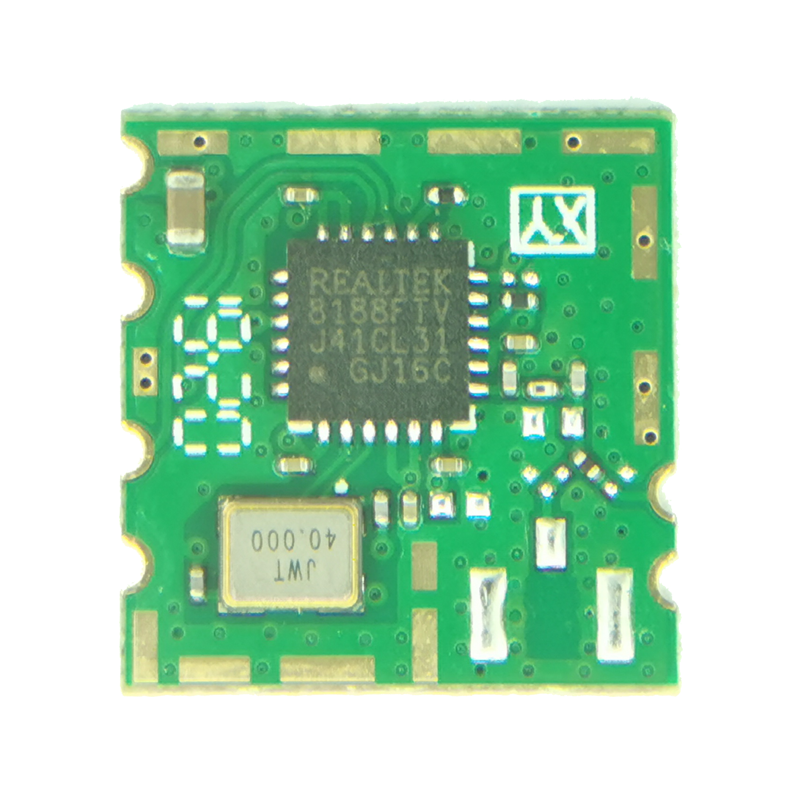

Main control chip: RTL8188FTV-VC
Specifications: 1T1R
Speed: 150M
Interface: USB2.0
Size: 12.3*12.7*0.6mm (L*W*H)
Working voltage: 3.3V
Wireless standard: 802.11b/g/n
Band width: 2.4G
Working temperature: -20°C to +85°C
Features
■ Support Linux/Android operating system
■ Support Soft AP
■ Comply with CE/FCC/SRRC electromagnetic compatibility regulations
■ Follow RoHs/REACH environmental protection directives
■ Stamp hole package, easy to SMT process
■ Suitable for: IPC, smart TV, set-top box, driving recorder

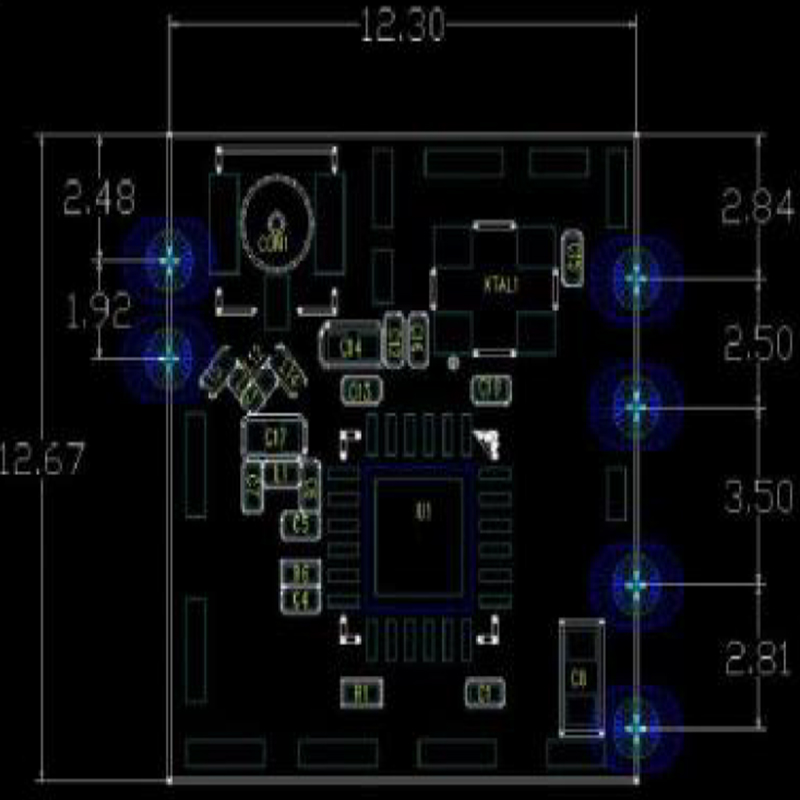

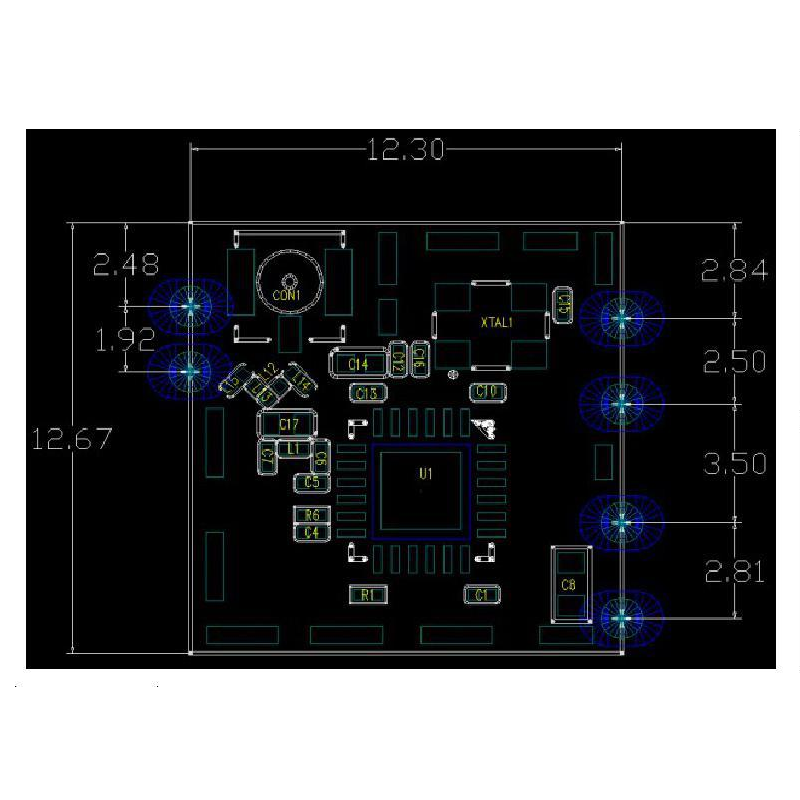

Module size chart

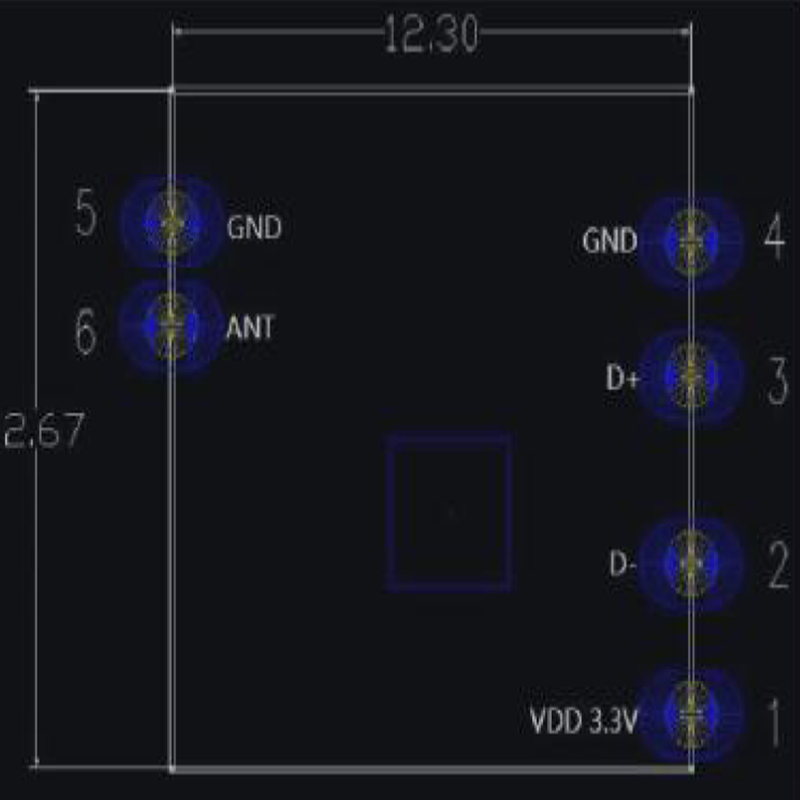

Module pin
| Pin serial number | Pin name | Function description |
| 1 | VDD3.3V | 3.3V |
| 2 | D- | USB- |
| 3 | D+ | USB+ |
| 4 | GND | GND |
| 5 | GND | GND |
| 6 | ANT | RF OUT |
