Realtek

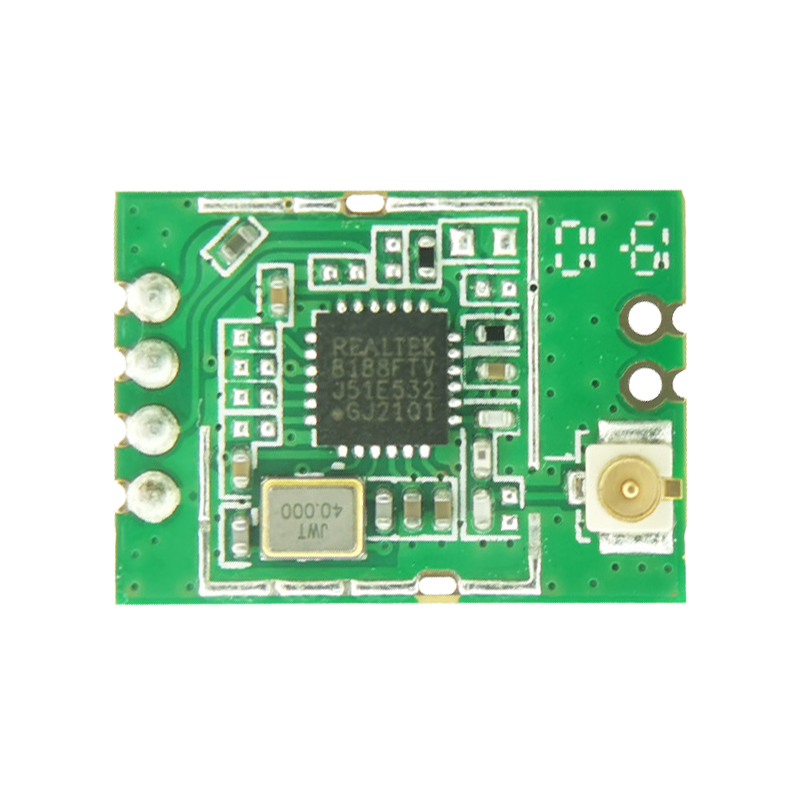

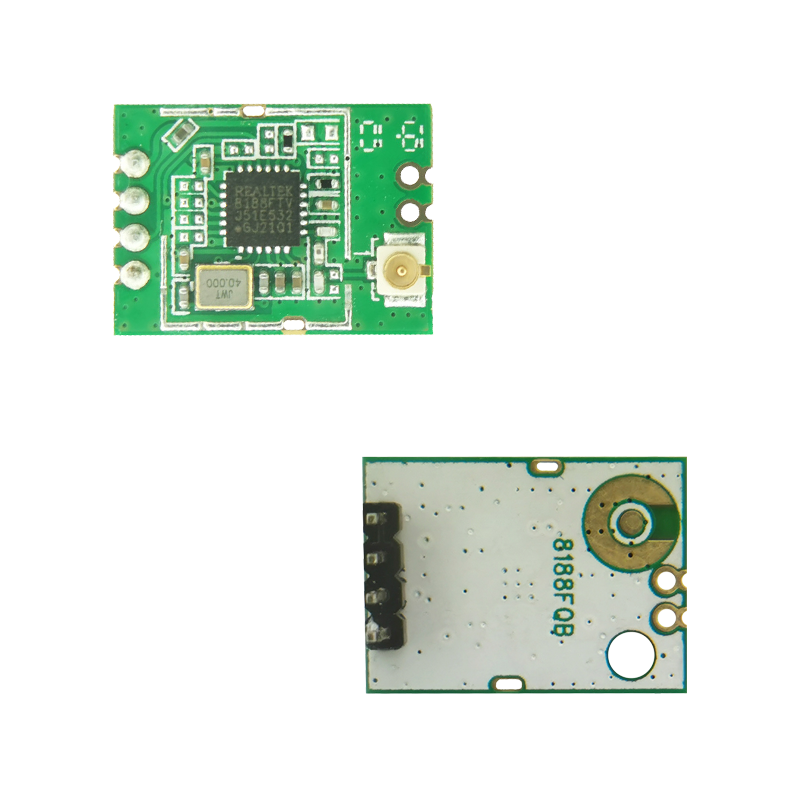

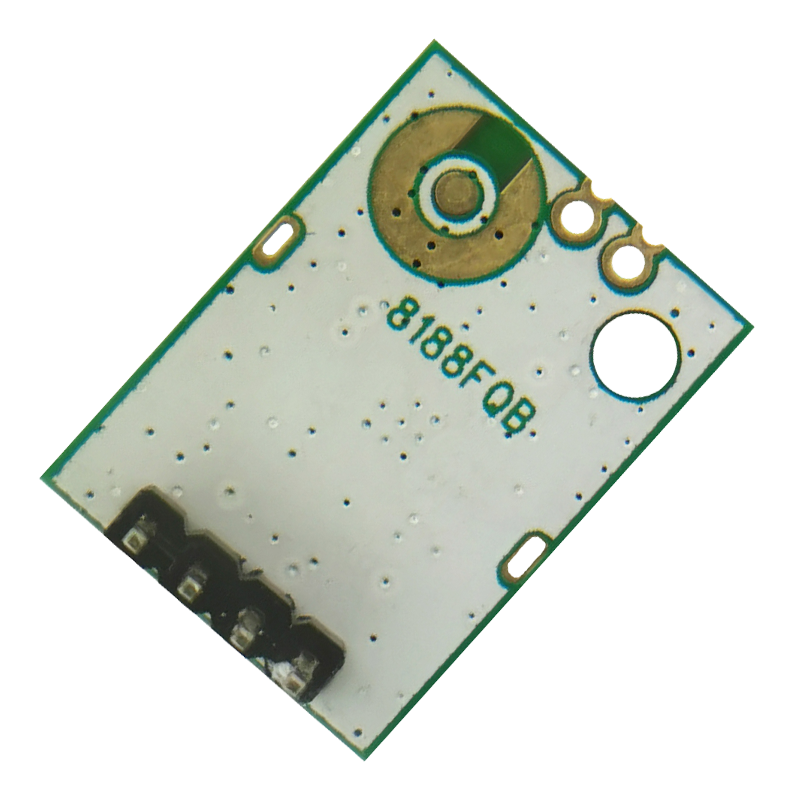

Chip: RTL8188FTV-VQ1 1T1R 2.4G 72M USB2.0 17.6*12.8mm

Item No.:
Main control chip: RTL8188FTV-VQ1 Specifications: 1T1R Speed: 72M Interface: USB2.0 Size: 17.6*12.8*2.1mm (L*W*H) Working voltage: 3.3V Wireless standard: 802.11b/g/n Band width: 2.4G Working temperature: -20
Description Item specifics

Main control chip: RTL8188FTV-VQ1

Specifications: 1T1R

Speed: 72M

Interface: USB2.0

Size: 17.6*12.8*2.1mm (L*W*H)

Working voltage: 3.3V

Wireless standard: 802.11b/g/n

Band width: 2.4G

Working temperature: -20°C to +70°C

Features

■ Support Linux/Android operating system

■ Support Soft AP

■ Comply with CE/FCC/SRRC electromagnetic compatibility regulations

■ Follow RoHs/REACH environmental protection directives

■ Stamp hole package, easy to SMT process

■ Suitable for: IPC, smart TV, set-top box, driving recorder

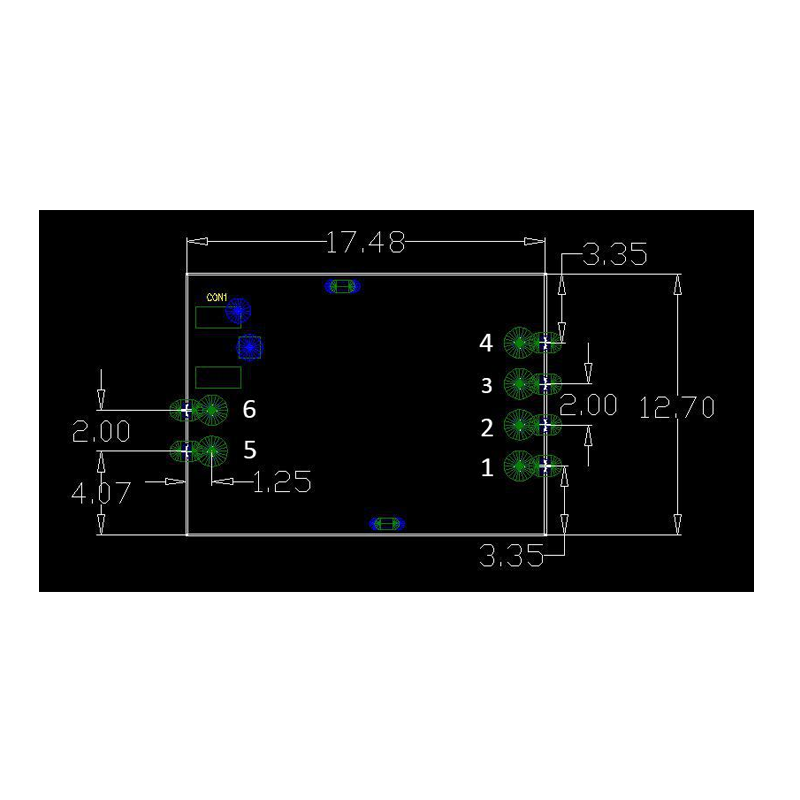

Module size chart

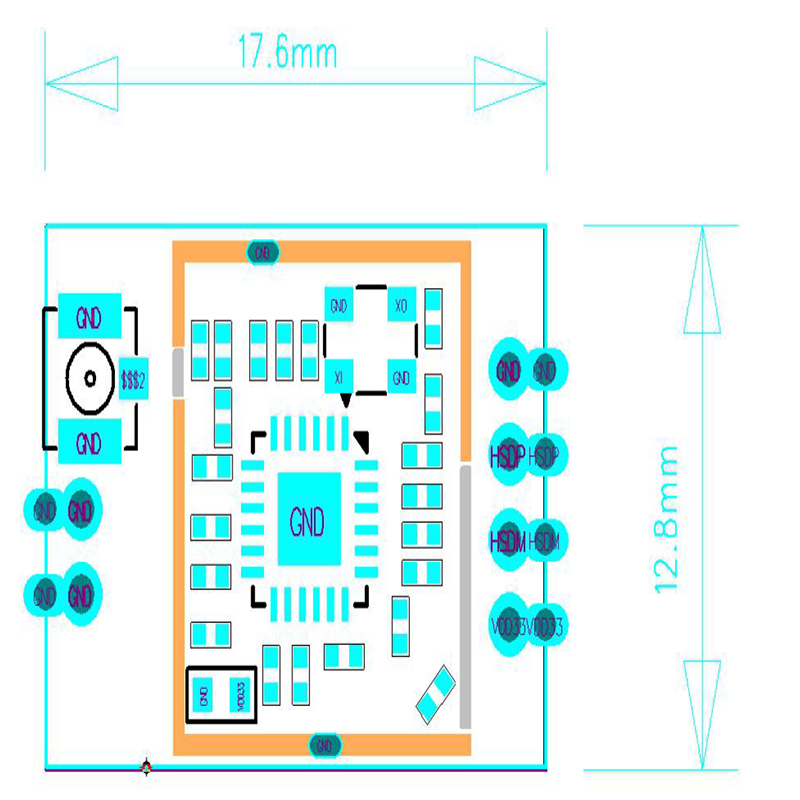

Module pin

WE1231

Pin serial numberPin nameFunction description
1VDD3.3V3.3V
2D-UDM
3D+UDP
4GNDGND
5GNDGND
6GNDGND
