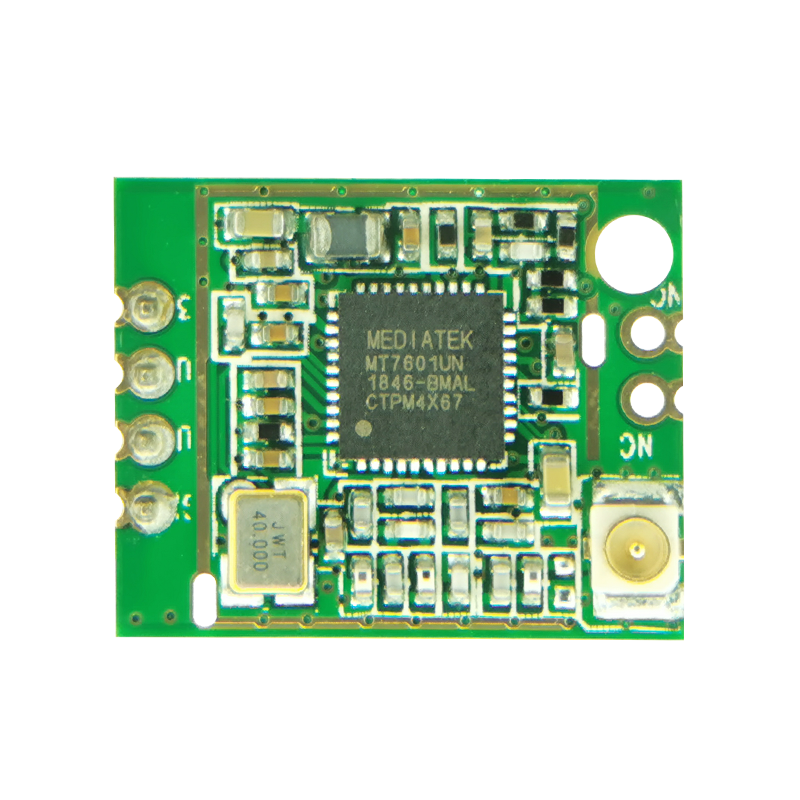

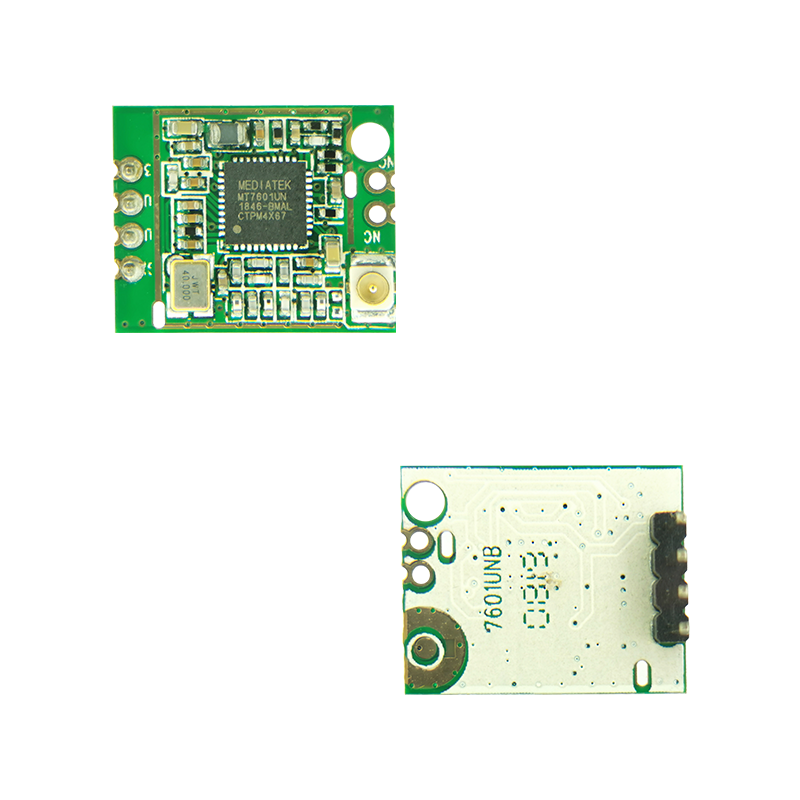

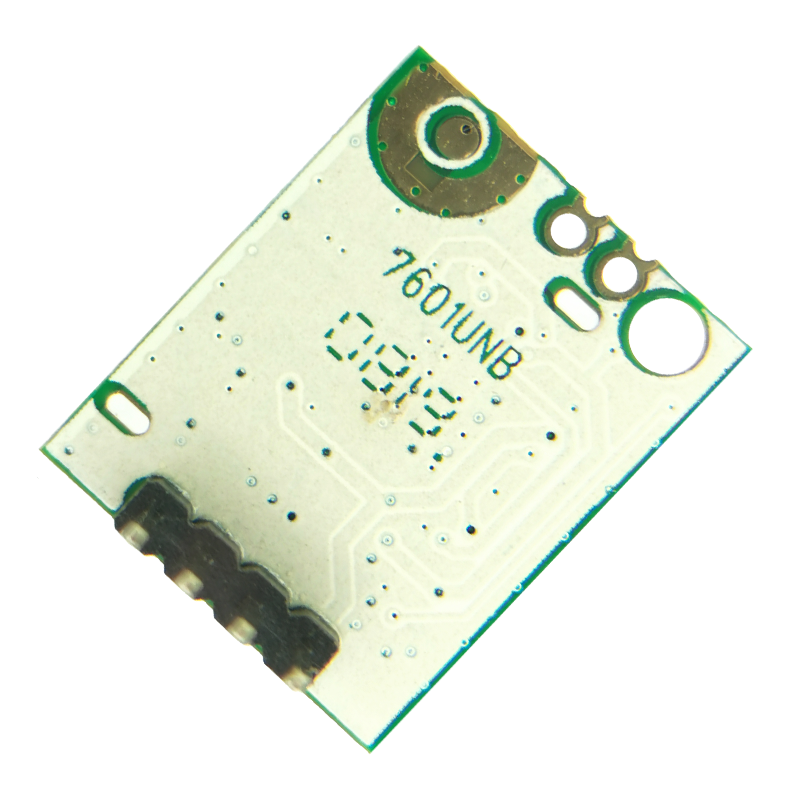

Main control chip: MT7601UN
Specifications: 1T1R
Speed: 150M
Interface: USB2.0
Size: 17.4*12.7*2.1mm (L*W*H)
Working voltage: 3.3V
Wireless standard: 802.11b/g/n
Band width: 2.4G
Working temperature: -20°C to +70°C
Features
■ Support Linux/Android operating system
■ Support Soft AP
■ Comply with CE/FCC/SRRC electromagnetic compatibility regulations
■ Follow RoHs/REACH environmental protection directives
■ Stamp hole package, easy to SMT process
■ Suitable for: IPC, smart TV, set-top box, driving recorder

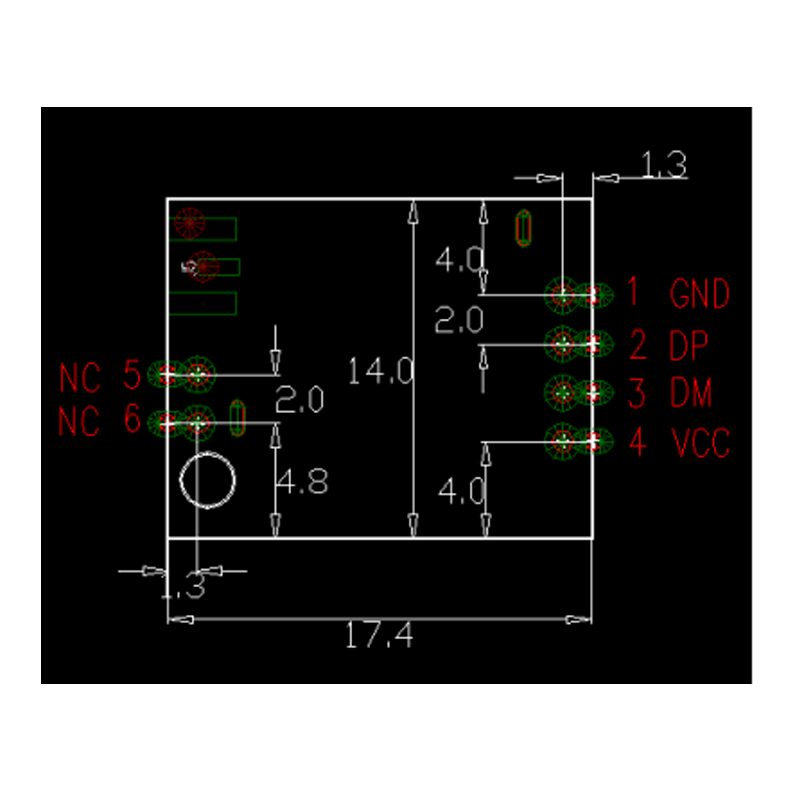

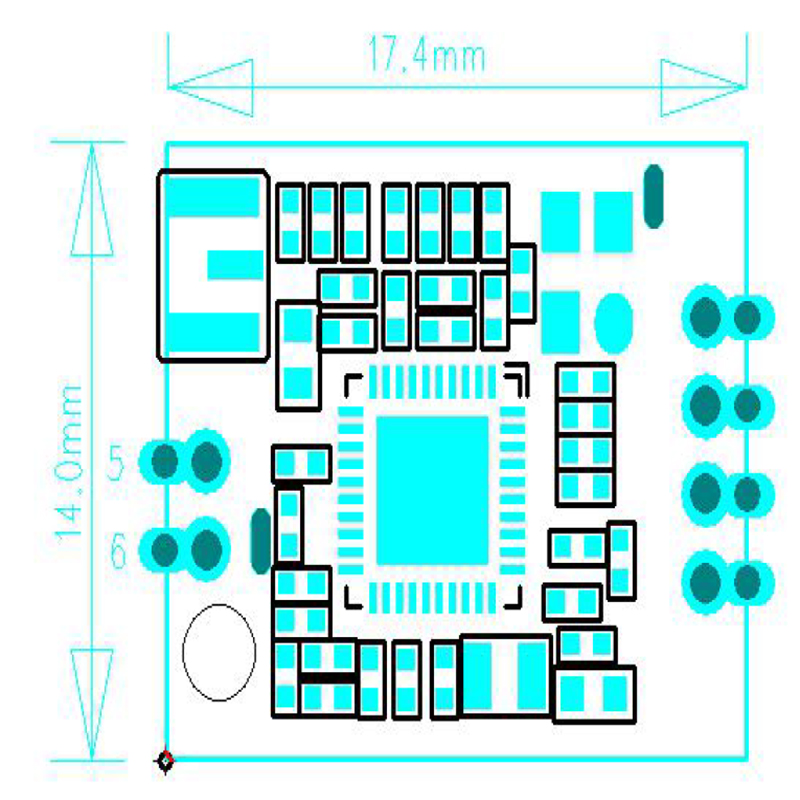

Module size chart

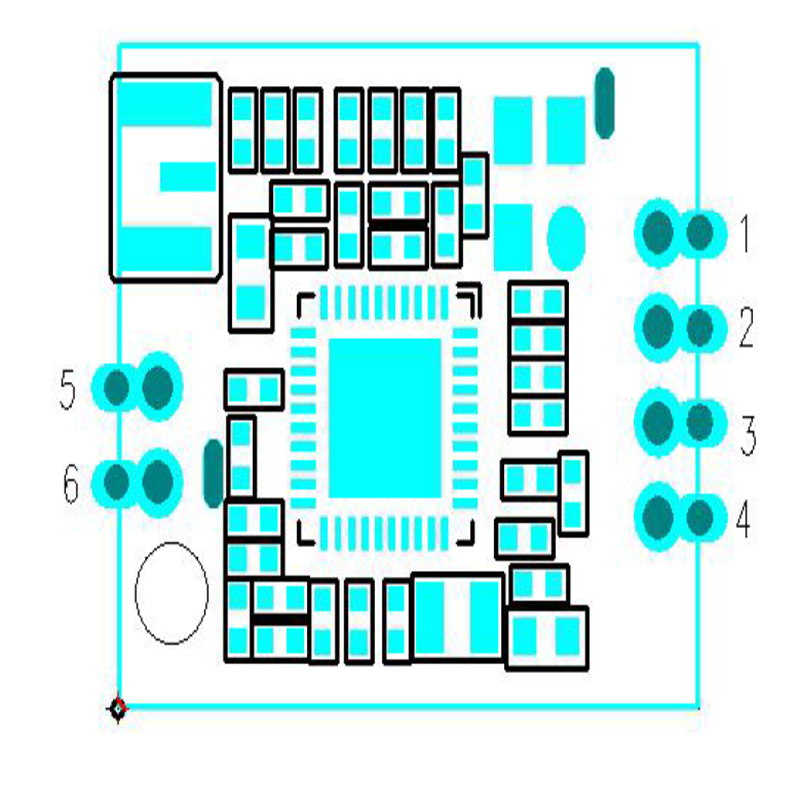

Module pin
Pin serial number | Pin name | Function description |
1 | GND | GND |
2 | UDP | USB+ |
3 | UNM | USB- |
4 | VCC | 3.3v |
5 | NC | NC |
6 | NC | NC |
