HOME > Products > WiFi Module > AIC Solution

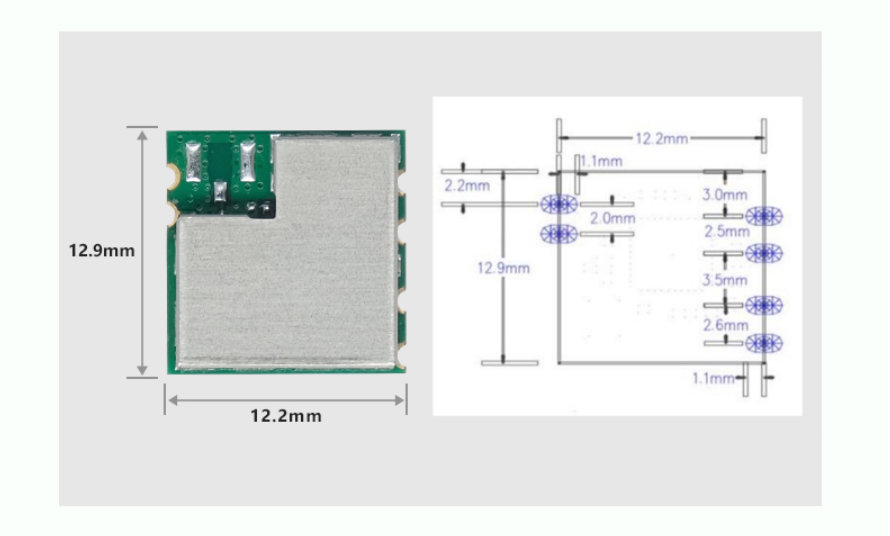

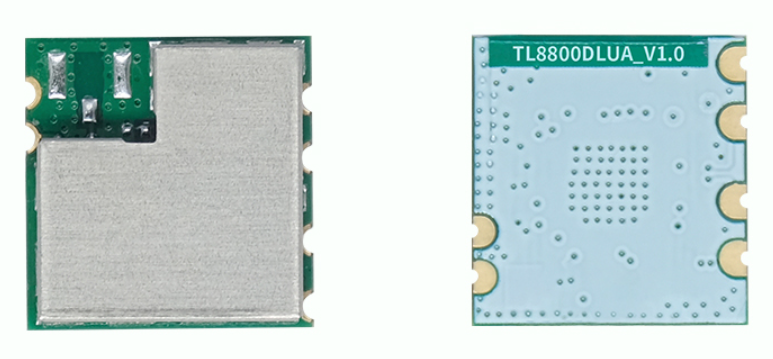

Chip: AIC8800DL 1T1R USB 2.4G 13*12.2mm model：TL8800DLUA
Chip: AIC8800DL 1T1R USB 2.4G 13*12.2mm model：TL8800DLUA

Chip: AIC8800DL 1T1R USB 2.4G 13*12.2mm model：TL8800DLUA

Item No.:
TL8800DLUA WiFi module is suitable for IPC, projectors, smart TVs, set-top boxes, and driving recorders.
Contact Us PDF Format
Description Item specifics

Support: Linux/Android operating system

Support: Soft AP

Regulations: CE/FCC/SRRC electromagnetic compatibility regulations

Standard: RoHs/REACH environmental protection directive

Stamp hole packaging, easy for SMT process

Applicable: IPC, projector, smart TV, set-top box, driving recorder

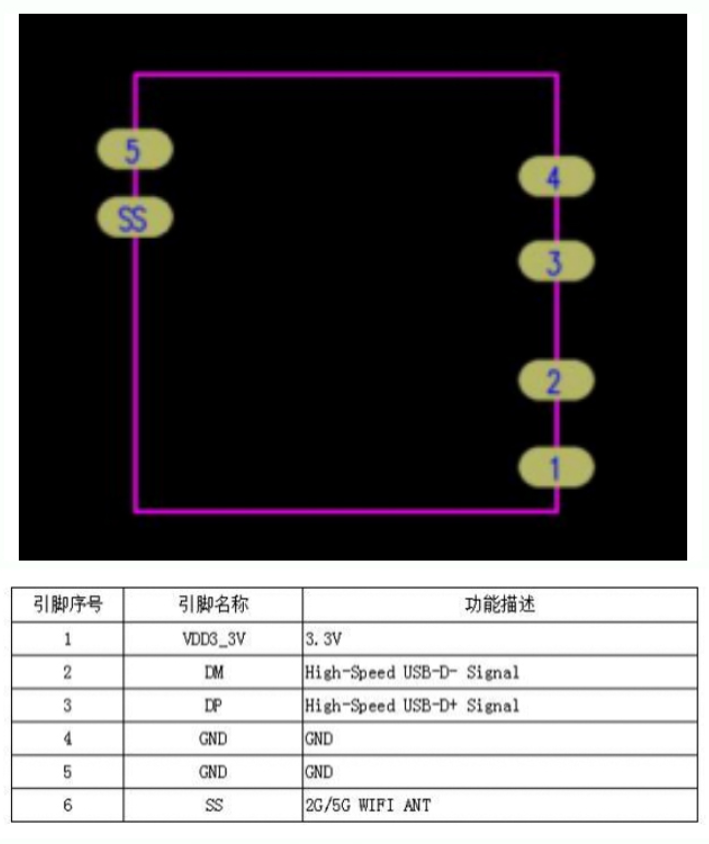

Pin
Name
Description
1VDD3_3V3.3V
2DMHigh-Speed USB-D- Signal
3DPHigh-Speed USB-D+ Signal
4
GND
GND
5
GND
GND
6
SS
2.4G WIFI ANT
