With the continuous development of technology, people's demand for the internet is also increasing. As an essential part of wireless connectivity in modern life, the role of routing modules has become increasingly important. In order to meet the demand for a faster and more stable network experience, our company's new WiFi6 routing module has been launched in a stunning manner.

  1.Product Introduction

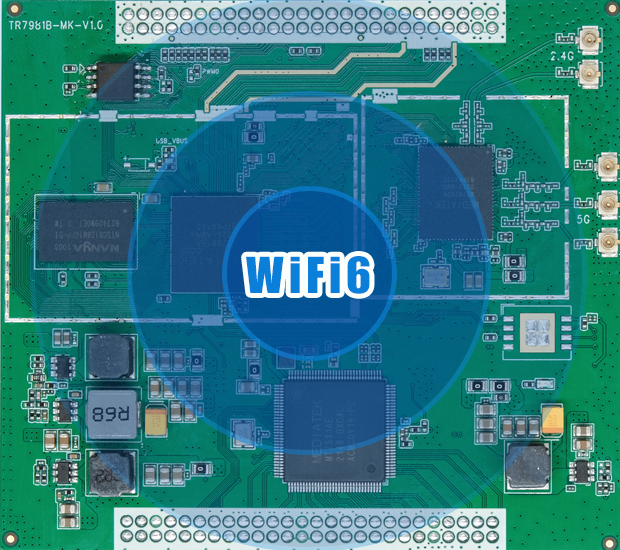

• The wireless routing module using the MT7981B+MT7976C+MT7531A chip solution supports the new generation Wi-Fi6 protocol, while also supporting OFDMA technology, greatly improving the router's carrying capacity. Multiple devices have low latency and smoother internet access, fully leveraging wireless Wi Fi performance, with a wireless rate of up to 3000Mbps.

• The CPU model is MT7981B, belonging to the Filogic 820 series, dual core A53, with a frequency of 1.3GHz, and also integrated with 2.4G and 5G wireless basebands.2.4G supports 8 OFDMA users, 5G supports 16 OFDMA users, and the maximum wireless bandwidth is 256 units.

2.Product highlights

Supports Wi Fi 6 standard (802.11ax),Provide 1 2.5G WAN port and 3 full gigabit LAN ports;

Supports 1024QAM and Long OFDM symbol technology, with a speed increase of approximately 38.6% compared to Wi Fi 5;

Supports OFMDA and MU-MIMO technologies, with low latency, high bandwidth, and multiple concurrency;

The maximum Wi Fi speed can reach 3000Mbps,2.4G supports 2T2R, two spatial streams, with a maximum rate of 574Mbps at a 40MHz bandwidth;

5G supports 3T3R, two spatial streams, and a maximum rate of 2402Mbps at 160MHz bandwidth,Embedded modular design facilitates integration and flexible selection of corresponding interfaces for applications. It only needs to be combined with actual design of the application board, improving efficiency and reducing repetitive design.

3.Application field

In terms of design, the MT7981B routing module adopts a highly integrated design, which can integrate all necessary hardware and software into one chip. This not only reduces the number of external components and costs, but also improves the reliability and stability of the module. In addition, the module also supports various interface standards, including USB, UART, SPI, etc., which can be easily connected to various development boards and controllers.

In summary, our MT7981B routing module is a high-performance, low-power, and easily integrated wireless communication module. It can provide stable and efficient wireless connections for various IoT devices, helping users achieve a more intelligent and convenient lifestyle. Welcome customers to choose and use!
